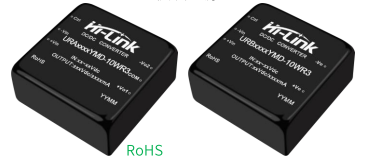

UR(A)B_YMD-10WR3系列
UR(A)B YMD-10WR3 系列产品输出功率为 10W，4:1宽电压输入范围，效率高达91%，1500VDC的常规隔离电压，允许工作温度-40℃to+85℃，具有输入欠压保护，输出过压、过流、短路保护功能，裸机满足CISPR32/EN55032CLASSA，广泛应用于医疗、工控、电力、仪器仪表、通信、铁路等领域。
Product Features:
超宽范围输入(4:1)，输出10W转换效率91%(Typ)隔离电压 1500Vdc超低待机功耗:0.036W(典型值)超快速启动:1mS(典型值)工作温度范围:-40°C~+85°C输入欠压，输出短路，过流，过压金属外壳，输出纹波低
| Model Title | Power (W) |
Input Voltage (VAC) |
Input Voltage (VDC) |
Output Voltage (VDC) |
Output Current (mA) |
Isolation Voltage (mA) |
Packaging Form | Package size (mm) |
Data Download (3D/PCB封装库/ Schematic Diagram Library) |
Certification/Standard | Technology Manual |
Sample Apply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
URB2403YMD-10WR3
|
10 | 9.0000-36.0000 | 3.3 | 25.4*25.4*11.0 |
|
|
 |
|||||
|
URB2405YMD-10WR3
|
10 | 9.0000-36.0000 | 5 | 25.4*25.4*11.0 |
|
|
|
|||||
|
URB2409YMD-10WR3
|
10 | 9.0000-36.0000 | 9 | 25.4*25.4*11.0 |
|
|
|
|||||
|
URB2412YMD-10WR3
|
10 | 9.0000-36.0000 | 12 | 25.4*25.4*11.0 |
|
|
|
|||||
|
URB24015YMD-10WR3
|
10 | 9.0000-36.0000 | 15 | 25.4*25.4*11.0 |
|
|
|
|||||
|
URB2424YMD-10WR3
|
10 | 9.0000-36.0000 | 24 | 25.4*25.4*11.0 |
|
|
|
|||||
|
URA2405YMD-10WR3
|
10 | 9.0000-36.0000 | 5 | 25.4*25.4*11.0 |
|
|
|
|||||
|
URA2409YMD-10WR3
|
10 | 9.0000-36.0000 | 9 | 25.4*25.4*11.0 |
|
|
|
|||||
|
URA2412YMD-10WR3
|
10 | 9.0000-36.0000 | 12 | 25.4*25.4*11.0 |
|
|
|
|||||
|
URA2415YMD-10WR3
|
10 | 9.0000-36.0000 | 15 | 25.4*25.4*11.0 |
|
|
|
